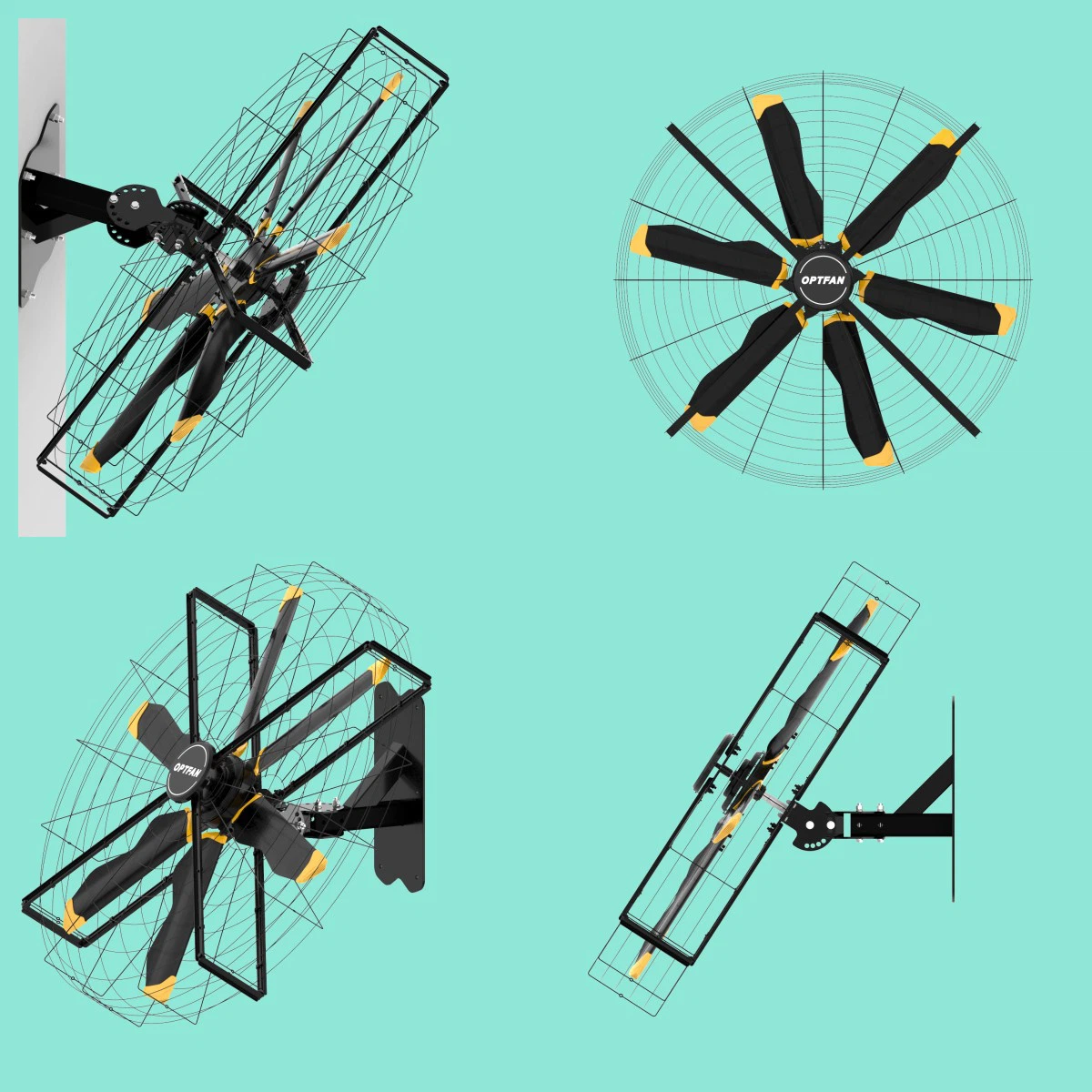

OPTFANS Big Wall Mount Fans HVLS Large Wall Fans for Factory
Texture of material: Magnesium aluminum alloy
Degree of protection: IP55
Control system: Variable frequency control
Application: Industrial occasions
Authentication：CE、TUV、PSE、ISO、ERP
Product Details
|

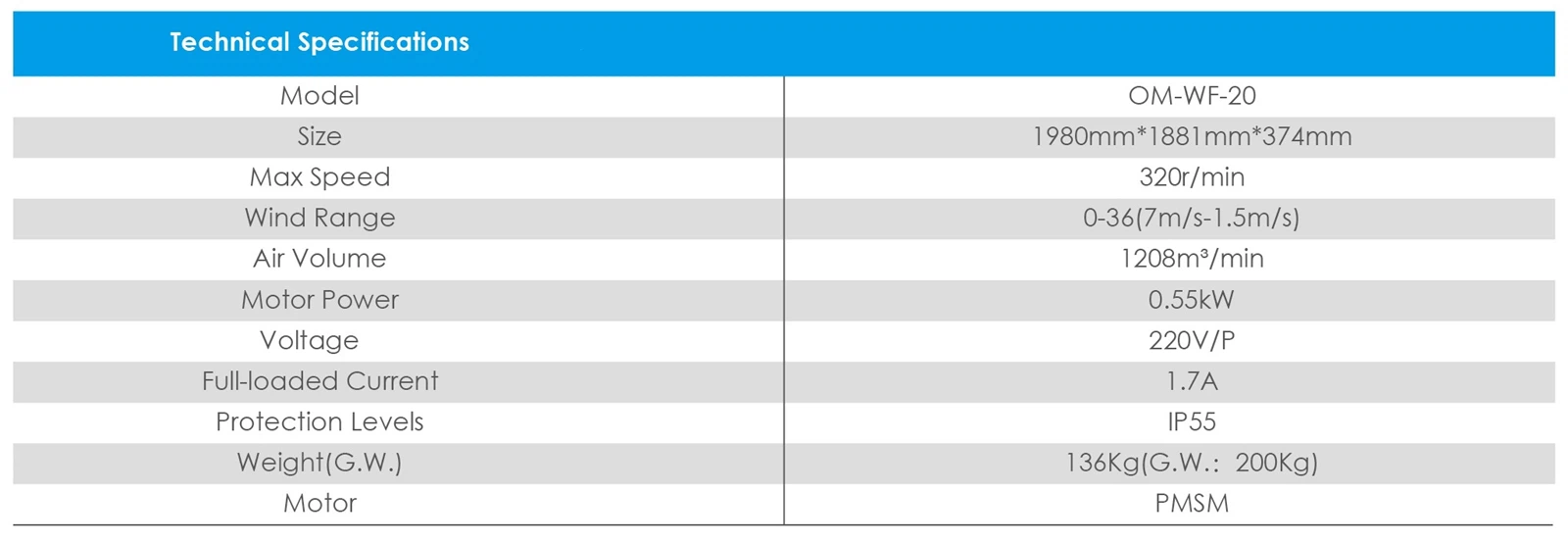

Main motor: PMSM Motor Fan size: 2M Warranty: 2 years Noise level: <39dBA Mounting height: >3m: |
Texture of material: Magnesium aluminum alloy Degree of protection: IP55 Control system: Variable frequency control Application: Industrial occasions Authentication：CE,TUV,PSE,ISO,ERP |
With a powerful 550W motor and oscillating head, the HVLS large wall mount fans delivers huge airflow to keep you cool on the hottest days.
Specially designed high-velocity blades make it ideal for those larger areas like warehouses, offices, gyms, patios, cafes, as well as worksites.
Installation Method for Industrial Fans
Prepare Tools: To install an industrial fan, you will need the following tools: a ladder, screwdriver, wrench, pneumatic drill, hammer, and masonry drill.
Determine Installation Location: It is recommended to install the fan at a height of at least 2.4 meters from the ground, and at least 50 centimeters away from walls or ceilings.
Assemble the Fan: Follow the instructions to assemble the various components of the fan, ensuring that all screws and fasteners are securely tightened.
Install the Fan: First, use the pneumatic drill to make holes at the installation site. Then, use expansion screws to secure the mounting bracket to the wall or ceiling.
Connect the Power Supply: Attach the fan's power cord to the electrical supply, and adjust the reverse switch and speed control switch to the desired positions.
Conduct a Final Check: Ensure that all joints are secure and that all screws and fasteners are tight. Start the fan and test its speed and stability without any load.
Make Necessary Adjustments: Based on your requirements, adjust the fan's angle and rotation direction using the wrench or hammer to reposition the mounting bracket as needed.

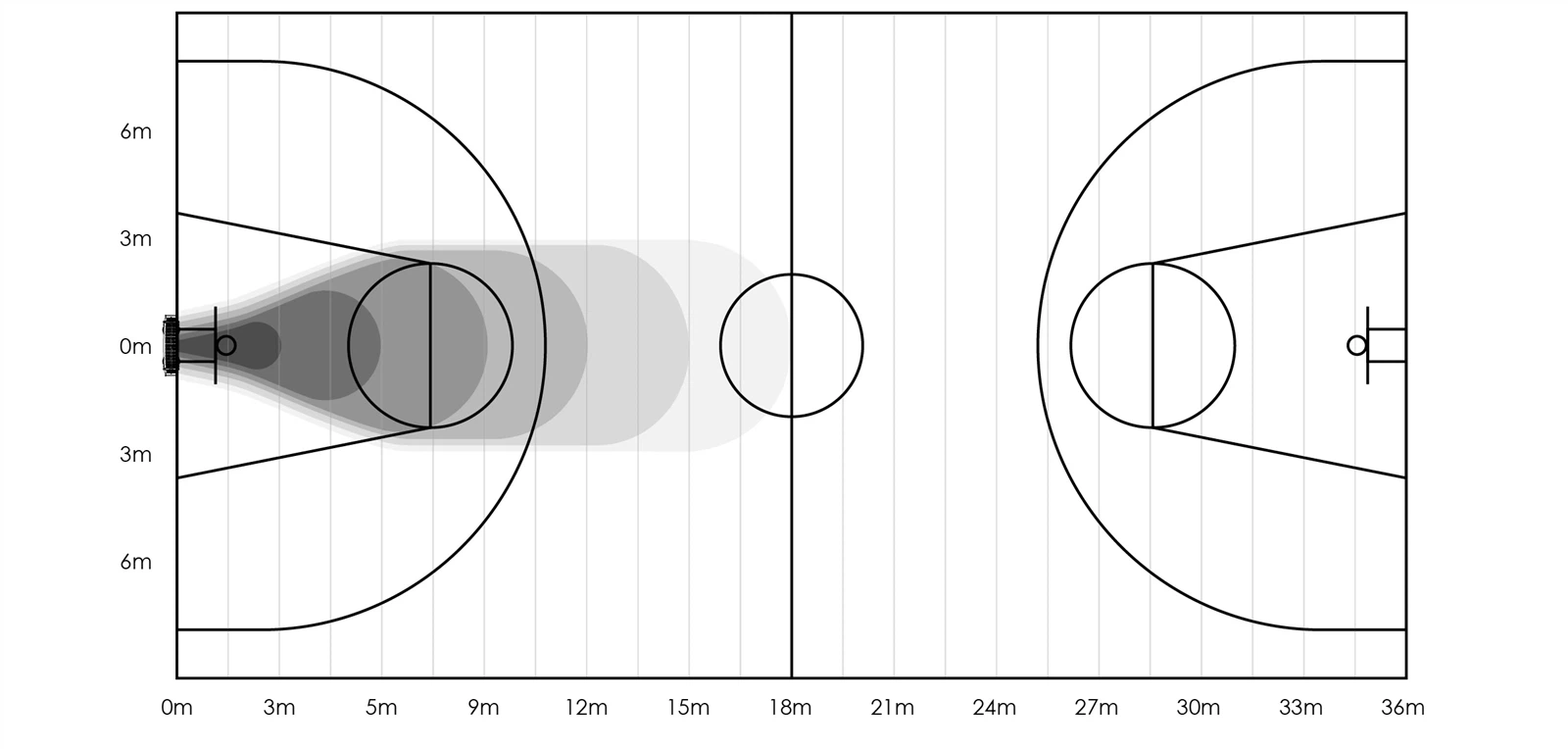

☆The distance of air supply exceeds the length of the whole basketball court, reaching more than 18m; within the distance of 18m, the wind speed ranges from 7m/s to 1.5m/s (the farther the distance is, the lower the wind speed is).
☆This data is measured under the maximum speed of the motor, the motor is stepless speed regulation, and the speed range is 0-320rpm.
Application
|
Gym Distributor Centers Community Centers Military Facilities Country Clubs Defence Shelters Athletic Stadiums |
Airports Bus Interchanges Multipurpose Halls Pet Care Centers Manufacturing Facilities Large Tents Temporary Shelters |
Hotel Foyers Places of Worships Wineries MRT Stations Sports Halls Warehouses/Workshops Agriculture/Dairy |
Food courts Exhibition Halls Shopping Malls Aircraft Hangars Schools Restaurants Discotheques |
